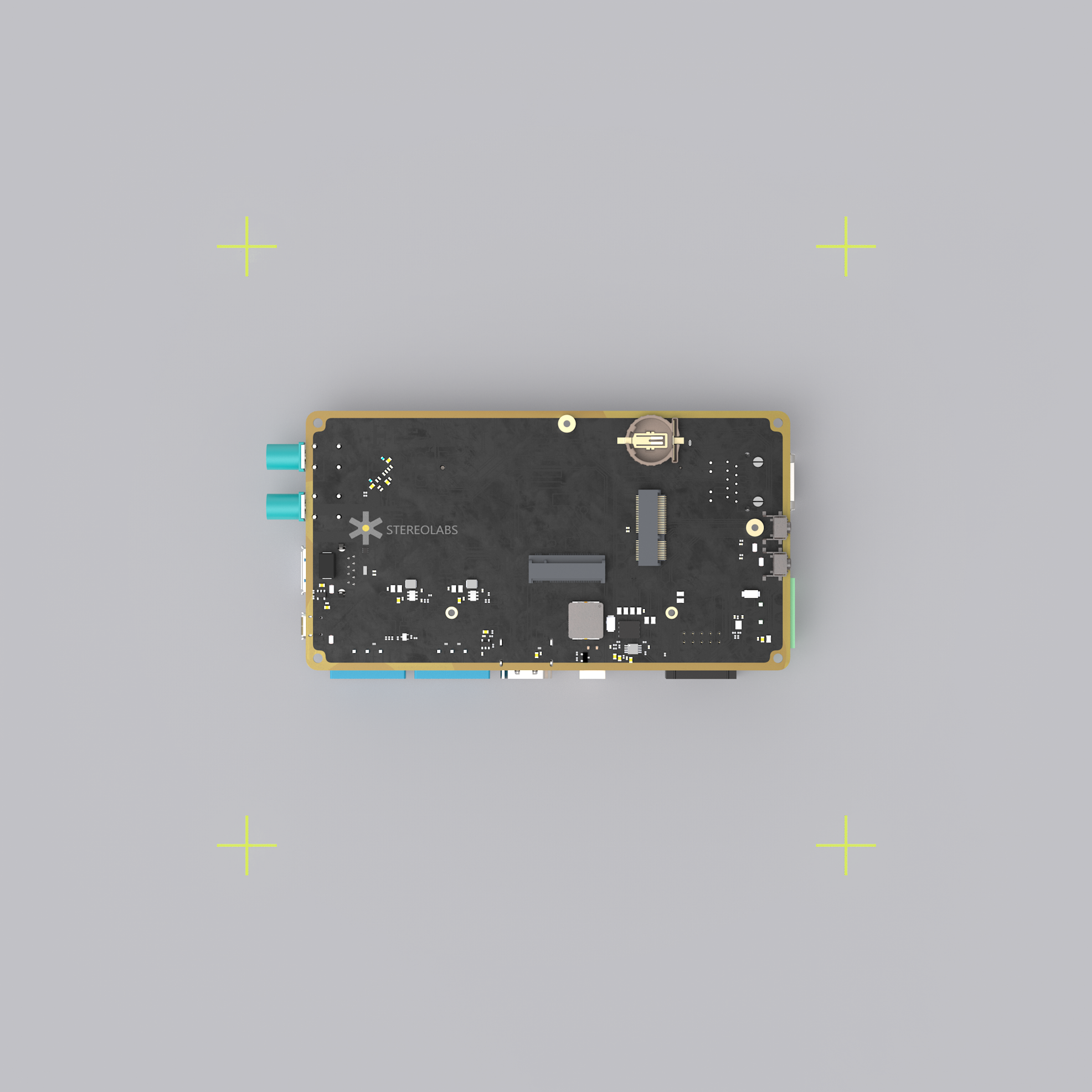

Mini Carrier Board

The Mini Carrier Board is a compact, high-performance AI carrier board designed for seamless integration with NVIDIA Jetson™ modules.

Engineered specifically for AI-driven vision-based applications, the Mini Carrier Board provides essential I/O interfaces, including support for GMSL2 connectivity.

Its design prioritizes scalability and integrability, making it the ideal solution for mass production and large-scale deployment of AI-powered robotics and vision-based systems.

Whether you're developing autonomous robots, or edge AI systems, the Mini Carrier Board offers the performance and flexibility needed to bring your projects to life.

I/O interfaces

• 2x GMSL2 FAKRA-Z Connectors

• 1x USB3.0 Type-A
• 1x 10/100/1000 Base-T Ethernet RJ45

• 1x HDMI 1.4
• 1x Micro USB2.0 Type-B for system flashing & OTG
• 1x GMSL2 Camera Synchronization Trigger Input
• 1x GMSL2 Cameras Synchronization Trigger Output
• 1x 12V Fan Entry. Active cooling is mandatory when the Jetson™ operates in MAXN SUPER mode.

• Miscellaneous Connector includes: 1x CAN, 1x UART, 2x GPIOs, 1x 5V, 1x 3.3V, 2x GND

General Specifications

• Dimensions: 152.8 × 77.5 × 23.7 mm (L×W×H) / 6.02 × 3.05 × 0.93 in
• Mounting options: 4 x M2.5 mounting holes
• Weight: 123g (0.27lb)
• Power: DC-IN 10.5V to 13.5V — 60W max.
• Screwable Terminal block connector TBP01P1W-508-02GR
• SSD 256GB mounted on M.2 Key-M 2242 socket


AI Module available

• NVIDIA® Jetson™ Orin Nano 4GB module
  Ai Performance: 34 TOPS
  Active cooling system is mandatory when the Jetson™ is turned into MAXN SUPER mode.

• NVIDIA® Jetson™ Orin Nano 8GB module
  Ai Performance: 67 TOPS
  Active cooling system is mandatory when the Jetson™ is turned into MAXN SUPER mode.

• NVIDIA® Jetson™ Orin NX 8GB module
  Ai Performance: 117 TOPS
  Active cooling system is mandatory when the Jetson™ is turned into MAXN SUPER mode.

• NVIDIA® Jetson™ Orin NX 16GB module
  Ai Performance: 157 TOPS
  Active cooling system is mandatory when the Jetson™ is turned into MAXN SUPER mode.


Supplied with Jetpack 6.2

WiFi Option

• WiFi 6 connectivity with 1x Intel AX210 Module mounted on M.2 Key-E 2230 socket
