    ZED Box

    $1,299.00
    NVIDIA Jetson module
    Internal SSD storage
    GPS RTK U-blox ZED-F9P

    Accessories

    U-Blox_GPS_Antenna_with-cable_top
    U-blox GNSS Multiband Antenna
    $49
    gmsl2_cable_extender_5m
    GMSL2 Fakra Extension Cable M-F
    From $25
    gmsl2_fakra_cable_5m
    GMSL2 Fakra Cable F-F
    From $15

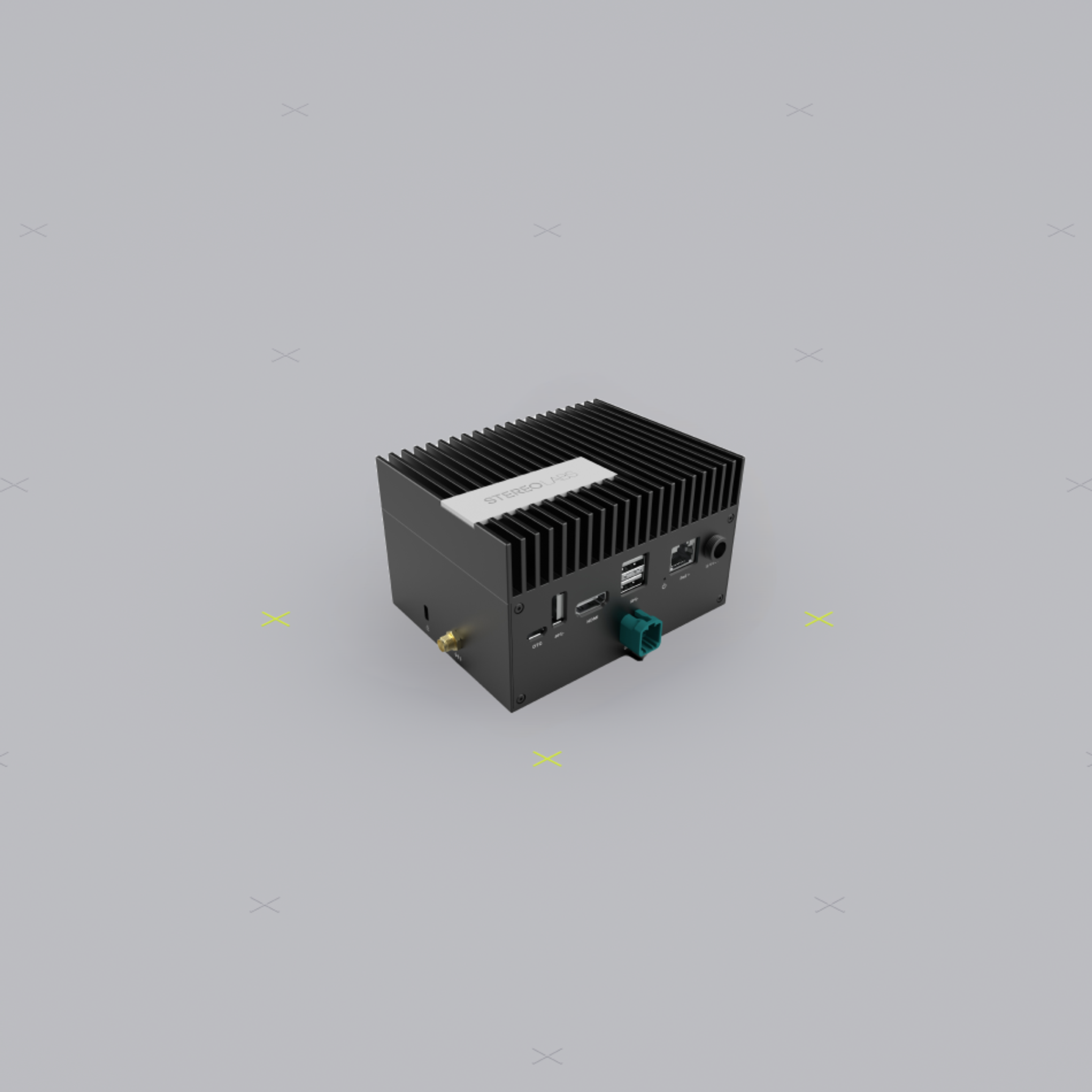

    The ZED Box is a powerful AI computer offering spatial computing capabilities for autonomous robotics and smart video analytics.

    The ZED Box Series includes a quad-port GMSL2 interface to connect up to four ZED X cameras or monocular ZED X One GMSL2 cameras.

    General Specifications

    • 4x GMSL2 camera inputs
    • 3x USB 3.1 camera inputs
    • Aluminium case passively cooled
    • WiFi 6 connectivity
    • Power: PoE+ (25W) or DC-IN 5A 12-19V
    • Mounting options: 92x45mm mounting holes, wall (brackets provided), DIN-rail mounting
    • Weight: 0.7 kg (1.5lb)
    • Dimensions: 118 x 92 x 71 mm (LxWxH) / 4.6 x 3.6 x 2.7 inches

    AI Module available (Super mode unavailable)

    Supplied with Jetpack 6.2

    Storage Options

    • SSD 256GB, 1TB or 2TB

    GPS Option

    • GPS RTK U-blox ZED-F9P
    • Supports GPS, GLONASS, Galileo, and BeiDou

    1x ZED Box with selected optional parts
    1x Power supply
    2x Mounting brackets
    1x 1-to-4 GMSL2 cable
    1x Mini-USB to USB cable
    2x 2.4/5GHz WiFi antennas

    Shipping: Worldwide. Dispatching in 3-4 weeks
    $1,299.00

    Compare

    From $1299Order now
    From $1299Order now
    From $1299Order now

    Key Specifications

    Processor
    Jetson™ Orin Nano 8GB
    Orin™ NX 8GB
    Jetson™ Orin NX 16GB
    AI Performance
    40 TOPS
    70 TOPS
    100 TOPS
    Carrier
    Custom NVIDIA® Jetson™ Carrier Board
    Custom NVIDIA® Jetson™ Carrier Board
    Custom NVIDIA® Jetson™ Carrier Board
    GPU
    512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores @ 625 MHz
    1,024-core NVIDIA® Ampere architecture GPU with 32 Tensor Cores @ 1020 MHz
    1,024-core NVIDIA® Ampere architecture GPU with 32 Tensor Cores @ 1173 MHz
    CPU
    6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
    6-core Arm® Cortex®-A78AE v8.2 64-bit CPU @2GHz 2x Clusters: (4x 256KB L2 +2MB L3) + 4MB LLC
    8-core Arm® Cortex®-A78AE v8.2 64-bit CPU @2GHz 2x Clusters: (4x 256KB L2 +2MB L3) + 4MB LLC
    DL Accelerator
    -
    1x NVDLA v2 @ 614 MHz
    2x NVDLA v2 @ 614 MHz
    Memory
    8GB 128-bit LPDDR5 102 GB/s
    8 GB 128-bit LPDDR5 102.4GB/s
    16 GB 128-bit LPDDR5 102.4GB/s
    Storage
    1x 256GB/1TB/2TB M.2 NVMe SSD
    1x 256GB/1TB/2TB M.2 NVMe SSD
    1x 256GB/1TB/2TB M.2 NVMe SSD

    Mechanical

    Operating Temperature
    0°C to 50°C (32°F to 122°F)
    0°C to 50°C (32°F to 122°F)
    0°C to 50°C (32°F to 122°F)
    Dimensions
    118 × 92 × 71 mm (4.6 × 3.6 × 2.7”) LxWxH
    118 x 92 x 71 mm (LxWxH)
    4.6 x 3.6 x 2.7 inches
    118 × 92 × 71 mm (4.6 × 3.6 × 2.7”) LxWxH
    Weight
    700g (1.5 lb)
    700 g (1.5 lb)
    700 g (1.5 lb)
    Case
    Industrial black aluminum case passively cooled
    Industrial black aluminum case passively cooled
    Industrial black aluminum case passively cooled

    Connectivity

    I/Os
    3x USB 3.0 Type-A
    4x GMSL2 FAKRA-Z Connectors
    1x 10/100/1000 Base-T Ethernet RJ45
    1x Micro USB2.0 Type-B for system flashing & OTG
    3x USB 3.0 Type-A
    4x GMSL2 FAKRA-Z Connectors
    1x 10/100/1000 Base-T Ethernet RJ45
    1x Micro USB 2.0 Type-B for system flashing & OTG
    3x USB 3.0 Type-A
    4x GMSL2 for 2x stereo or 4x mono cameras
    1x 10/100/1000 Base-T Ethernet RJ45
    1x Micro US B2.0 Type-B for system flashing & OTG
    Display Output
    1x HDMI 1.4
    1x HDMI 2.1
    1x HDMI 2.1
    WiFi
    Wifi 6 with 1x Intel AX210 Module mounted on M.2 Key-E 2230 socket and 2x 2.4/5GHz WiFi antennas
    Optional 1x GPS RTK U-Blox ZED-F9P (support Galileo, GPS, BeiDou and GLONASS)
    Wifi 6 with 1x Intel AX210 Module mounted on M.2 Key-E 2230 socket and 2x 2.4/5GHz WiFi antennas
    Wifi 6 with 1x Intel AX210 Module mounted on M.2 Key-E 2230 socket and 2x 2.4/5GHz WiFi antennas
    GNSS
    Optional 1x GPS RTK U-Blox ZED-F9P (support Galileo, GPS, BeiDou and GLONASS)
    Optional 1x GPS RTK U-Blox ZED-F9P (support Galileo, GPS, BeiDou and GLONASS)
    Optional 1x GPS RTK U-Blox ZED-F9P (support Galileo, GPS, BeiDou and GLONASS)
    Power
    PoE+ (25.5W) or DC-IN (60W, 12-19V)
    DC barrel Jack - available with a locking ring
    PoE+ (25.5W) or DC-IN (60W, 12-19V)
    DC barrel Jack - available with a locking ring
    PoE+ (25.5W) or DC-IN (60W, 12-19V)
    DC barrel Jack - available with a locking ring
    Mounting Options
    4x Mounting holes VESA-75 Compatible M4x0.7 Wall brackets provided
    4x Mounting holes VESA-75 Compatible M4x0.7 Wall brackets provided
    4x Mounting holes VESA-75 Compatible M4x0.7 Wall brackets provided

    Video Recording

    Video Encode
    1080p30 supported by 1-2 CPU cores
    1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265)
    1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265)
    Video Decode
    1x 4K @ 60 (H.265) 2x 4K @ 30 (H.265) 5x 1080p @ 60 (H.265) 11x 1080p @ 30 (H.265)
    1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265)
    1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265)

    Software

    Operating System
    Jetson Linux
    Jetson Linux
    Jetson Linux

    Other

    In the Box
    1x ZED Box with selected optional parts
    1x Power supply
    2x Mounting brackets
    1x 1-to-4 GMSL2 cable
    1x Mini-USB to USB cable
    2x 2.4/5GHz WiFi antennas
    1x ZED Box with selected optional parts
    1x Power supply
    2x Mounting brackets
    1x 1-to-4 GMSL2 cable
    1x Mini-USB to USB cable
    2x 2.4/5GHz WiFi antennas
    1x ZED Box with selected optional parts
    1x Power supply
    2x Mounting brackets
    1x 1-to-4 GMSL2 cable
    1x Mini-USB to USB cable
    2x 2.4/5GHz WiFi antennas
