    ZED Box Mini

    $879.00
    Module
    WiFi

    Accessories

    Fan for ZED Box Mini
    $20
    gmsl2_cable_extender_5m
    GMSL2 Fakra Extension Cable M-F
    From $25
    gmsl2_fakra_cable_5m
    GMSL2 Fakra Cable F-F
    From $15

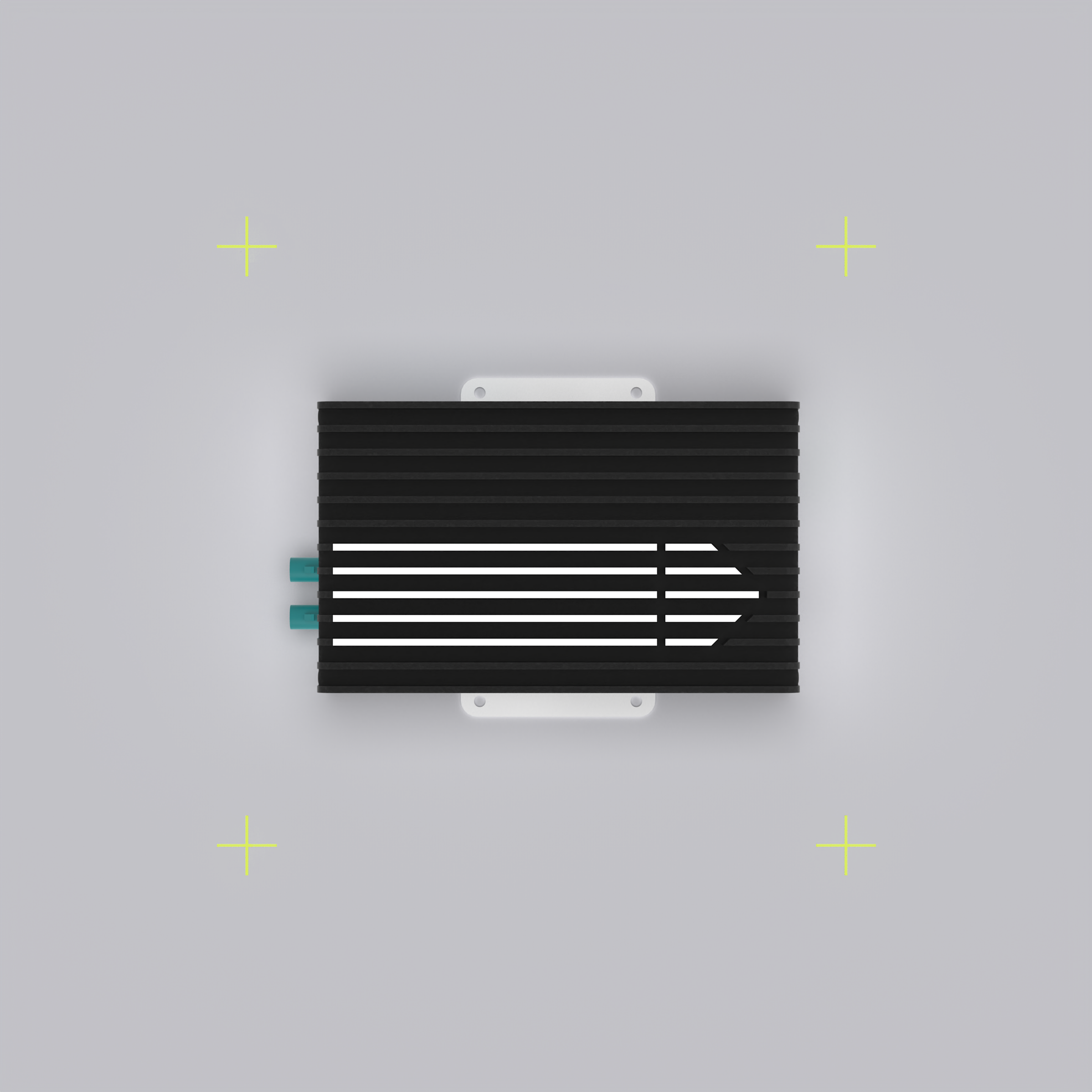

    The ZED Box Mini is a compact, high-performance embedded computing system built on NVIDIA Jetson Orin™ modules.

    Engineered specifically for AI-driven vision-based applications, the ZED Box Mini provides essential I/O interfaces, including support for GMSL2 connectivity.

    Its design prioritizes scalability and affordability, making it the ideal solution for large-scale deployments of AI-powered robotics and vision-based systems.

    Whether you're developing autonomous robots, or edge AI systems, the ZED Box Mini offers the performance and flexibility needed to bring your projects to life.

    I/O interfaces

    • 2x GMSL2 FAKRA-Z Connectors
    • 1x USB3.0 Type-A
    • 1x 10/100/1000 Base-T Ethernet RJ45
    • 1x HDMI 1.4
    • 1x Micro USB2.0 Type-B for system flashing & OTG
    • 1x GMSL2 Camera Synchronization Trigger Input
    • 1x GMSL2 Cameras Synchronization Trigger Output
    • 1x 12V Fan Entry. The fan installation is mandatory when the Jetson™ operates in MAXN SUPER mode.
    • Miscellaneous Connector includes: 1x CAN, 1x UART, 2x GPIOs, 1x 5V, 1x 3.3V, 2x GND

    General Specifications

      • Aluminum case passively cooled
      • Dimensions: 152.8 × 103.8 × 41.5 mm (L×W×H) / 6.02 × 4.09 × 1.63 in
      • Mounting options: 92 × 45mm mounting holes
      • Weight: 600 g (1.32lb)
      • Power: DC-IN 10.5V to 13.5V — 60W max
      • Screwable Terminal block connector TBP01P1W-508-02GR
      • SSD 256GB mounted on M.2 Key-M 2242 socket

    AI Module available

    Supplied with Jetpack 6.2

    WiFi Option

    • WiFi 6 connectivity with 1x Intel AX210 Module mounted on M.2 Key-E 2230 socket and with 2x 2.4/5GHz WiFi antennas
    • 1x ZED Box Mini
    • 1x Power Supply
    • 2x Sync Connectors (No cables)
    • 1x Micro-USB to USB cable
    • 2x 2.4/5GHz WiFi antennas (if WiFi is selected)
    Shipping: Worldwide. Dispatched in 1 - 2 weeks.
    $879.00

    Compare

    From $879Order now
    From $879Order now
    From $879Order now

    Key Specifications

    Processor
    Jetson™ Orin Nano 4GB
    Jetson™ Orin Nano 8GB
    Jetson ORIN NX™ 8GB
    AI Performance
    34 TOPS
    67 TOPS
    117 TOPS
    Carrier
    Custom Low-Profile Optimized NVIDIA® Jetson™ Carrier Board
    Custom Low-Profile NVIDIA® Jetson™ Optimized Carrier Board - Gen 2
    Custom Low-Profile NVIDIA® Jetson™ Optimized Carrier Board - Gen 2
    GPU
    512-core NVIDIA® Ampere architecture GPU with 16 Tensor Cores @ 1020 MHz
    1,024-core NVIDIA® Ampere architecture GPU with 32 Tensor Cores @ 1020 MHz
    1,024-core NVIDIA® Ampere architecture GPU with 32 Tensor Cores @ 1173 MHz
    CPU
    6-core Arm® Cortex®-A78AE v8.2 64-bit CPU@1.7GHz 1.5MB L2 + 4MB L3
    6-core Arm® Cortex®-A78AE v8.2 64-bit CPU @1.7GHz 1.5MB L2 + 4MB L3
    6-core Arm® Cortex®-A78AE v8.2 64-bit CPU@2GHz 1.5MB L2 + 4MB L3
    DL Accelerator
    -
    -
    1x NVDLA v2 @ 1230 MHz
    Memory
    4GB 64-bit LPDDR5 51 GB/s
    8GB 128-bit LPDDR5 102 GB/s
    8GB 128-bits LPDDR5 102.4 GB/s
    Storage
    NVMe SSD 256GB mounted on M.2 Key-M 2242 socket
    NVMe SSD 256GB mounted on M.2 Key-M 2242 socket
    NVMe SSD 256GB mounted on M.2 Key-M 2242 socket

    Mechanical

    Operating Temperature
    -20°C to +50°C (-4°F to 122°F)
    -20°C to +50°C (-4°F to 122°F)
    -20°C to +50°C (-4°F to 122°F)
    Dimensions
    152.8× 103.8× 41.5 mm (6.02 × 4.09 × 1.63") LxWxH
    152.8× 103.8× 41.5 mm (6.02 × 4.09 × 1.63") LxWxH
    152.8× 103.8× 41.5 mm (6.02 × 4.09 × 1.63") LxWxH
    Weight
    600g (1.32lbs)
    600 g
    600 g
    Case
    Black Anodized Aluminum Heatsink passively or actively cooled. The fan installation is mandatory when the Jetson™ operates in MAXN SUPER mode. White Powder-Coated Bent Steel for the lower part of the product.
    Black Anodized Aluminum Heatsink passively cooled (Fan Sold Separately). White Powder-Coated Bent Steel for the lower part of the product.
    Black Anodized Aluminum Heatsink passively cooled (Fan Sold Separately). White Powder-Coated Bent Steel for the lower part of the product.

    Connectivity

    Power
    DC 10.5V to 13.5V — 60W max
    Screwable Terminal block connector TBP01P1W-508-02GR
    12V +/- 1.5V DC Input
    Screwable Terminal block connector TBP01P1W-508-02GR
    12V +/- 1.5V DC Input
    Screwable Terminal block connector TBP01P1W-508-02GR
    I/Os
    1x USB3.0 Type-A
    2x GMSL2 FAKRA-Z Connectors
    1x 10/100/1000 Base-T Ethernet RJ45
    1x Micro USB 2.0 Type-B for system flashing & OTG
    1x GMSL Camera Synchronization Trigger Input
    1x GMSL Cameras Synchronization Trigger Output
    1x 12V Fan Entry
    1x 10 pins Header Connector including : 1x CAN PHY, 1x UART, 2x GPIOs, 1x 5V, 1x 3.3V, 2x GND
    2x GMSL2 FAKRA-Z Connectors
    1x USB3.2 Gen 2
    1x USB2.0 for system flashing and OTG
    1x GMSL Camera Synchronization Trigger Input
    1x GMSL Cameras Synchronization Trigger Output
    1x 12V Fan Entry
    1x 10 pins Header Connector including : 1x CAN PHY, 1x UART, 2x GPIOs, 1x 5V, 1x 3.3V, 2x GND
    2x GMSL2 FAKRA-Z Connectors
    1x USB3.2 Gen 2
    1x USB2.0 for system flashing and OTG
    1x GMSL Camera Synchronization Trigger Input
    1x GMSL Cameras Synchronization Trigger Output
    1x 12V Fan Entry
    1x 10 pins Header Connector including : 1x CAN PHY, 1x UART, 2x GPIOs, 1x 5V, 1x 3.3V, 2x GND
    Display Output
    1x HDMI 1.4
    1x HDMI 1.4* * Compliant to the HDMI 1.4 Specification but compatible with HDMI 2.1 specification.
    1x HDMI 2.1
    WiFi
    Optional 1x Intel AX210 Module mounted on M.2 Key-E 2230 socket Optional 2x 2.4/5GHz WiFi antennas
    Optional AX210 Intel Wifi module
    Optional AX210 Intel Wifi module
    GNSS
    -
    -
    -
    Mounting Options
    4x M3 mounting holes
    94.55mm × 48mm with 3.6mm holes diameter
    94.55mm × 48mm with 3.6mm holes diameter
    Networking
    1x 10/100/1000 Base-T Ethernet
    1x 10/100/1000 Base-T Ethernet

    Video Recording

    Video Encode
    1080p30 supported by 1-2 CPU cores
    1080p30 supported by 1-2 CPU cores
    H.265
    1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30
    Video Decode
    1x 4K @ 60 (H.265) 2x 4K @ 30 (H.265) 5x 1080p @ 60 (H.265) 11x 1080p @ 30 (H.265)
    H.265
    1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30
    H.265
    1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60 | 18x 1080p30

    Software

    Operating System
    Jetson Linux
    Ubuntu 20.04 (L4T)
    Ubuntu 20.04 (L4T)

    Other

    In the Box
    1x ZED Box Mini with the selected optional parts 1x Fan, Fan Mount and Screws 1x Power Supply 1x Extra Power Supply Connector 2x Sync Connectors (No cables)
    • 1x ZED Box Orin Nano 8GB • 1x Power supply • 2x 1.5m GMSL Female to Female cable • 2x 2.4/5GHz WiFi antennas (if WiFi option selected)
    • 1x ZED Box Orin NX 8GB • 1x Power supply • 2x 1.5m GMSL Female to Female cable • 2x 2.4/5GHz WiFi antennas (if WiFi option selected)
